The R8K 3DE

FEATURES


Holds 1 Card

4.52″ x 4.29″ x 1.57″

Also available with metal enclosure

R8K 3DE

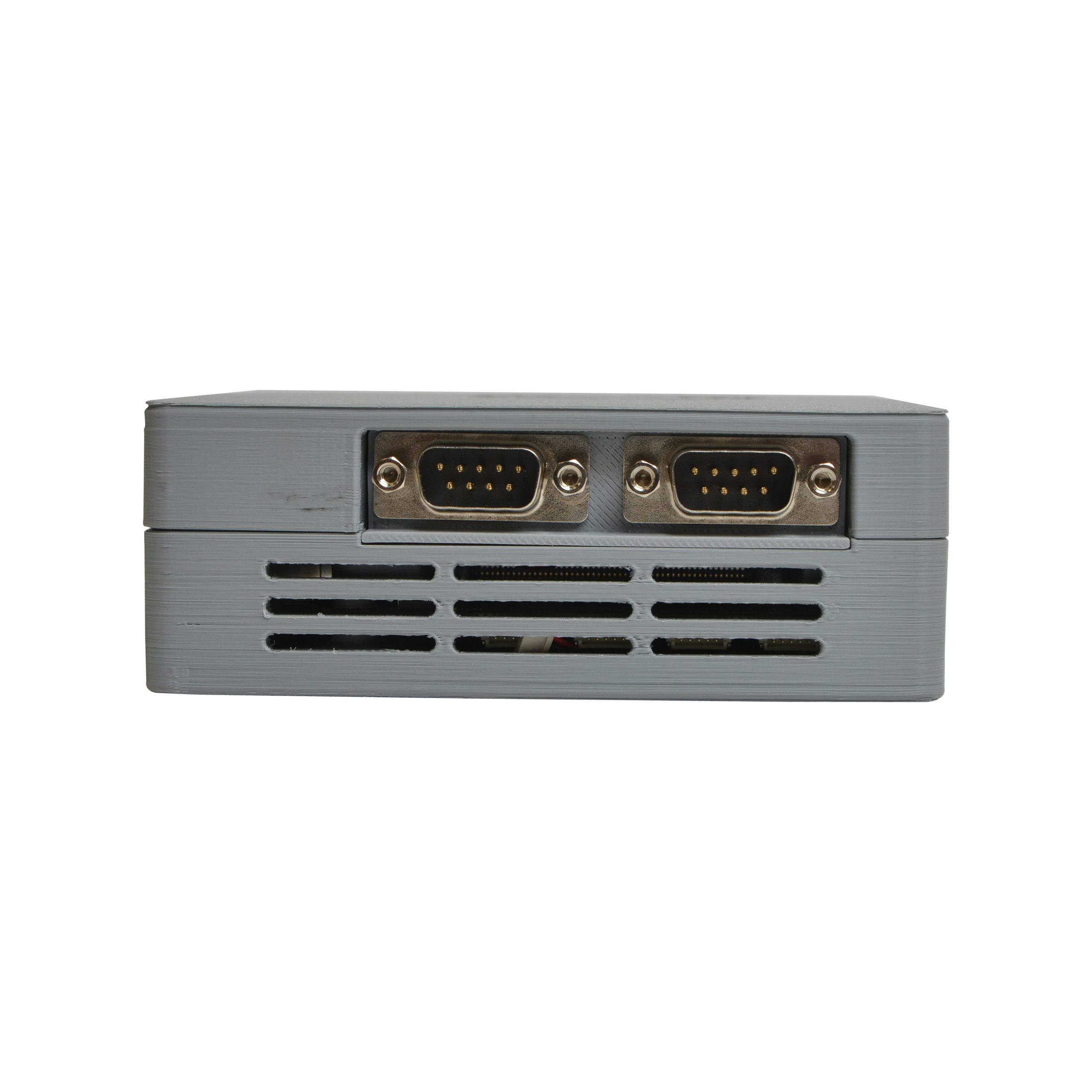

The R8K 3DE is our R8K-I with an enclosure designed and manufactured by ADDC. The enclosure provides cooling for the card and networking components so all you need is to plug in a PC card configured with your software to effortlessly create a network appliance that leverages the BioDigital platform. Made in the USA.

  • SKU: ADDC-R8K-3DE
  • Size: 4.52″ x 4.29″ x 1.57″
  • USB 3.0: 1
  • USB 2.0: 1
  • 10/100/1000 Mbps Ethernet: 8
  • RS-232 headers: 2
  • Power: 5VDC Power Input Power provided by:
    • 5VDC 2.5mm center positive power jack
  • Mini-DisplayPort (HDMI capable): 1
  • Reset button
  • 5V fan
  • Red 5V power LED indicator
  • Green Card Detect LED indicator
  • BioDigitalPC® 100-pin Docking Connector
